HJ5NG CPS Premium Refrigerant Charging Hoses with SafeMate™ Valves
Key Features
- Straight Fitting (Solid Brass, Aluminum Knob) SAE 5/16″
- SafeMate Fitting (Solid Brass, Aluminum Knob) 5/16″
- Hose Permeation Rate ≤1.01 Lbs/SqFt/Year (≤4.9 Kg/m2/Year)
- Burst Pressure ≥4000 psi (27.6 Mpa)
- Maximum Working Pressure 800 psi (5.51 Mpa)

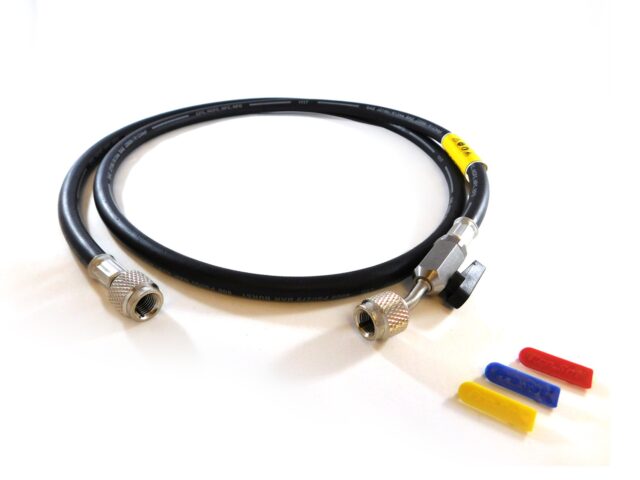

- Each hose features a patented, “T” shaped, SafeMate™ valve and fitting on one end, and an open, straight fitting on the other.
- The T-shaped SafeMate™ valve has a screw-down core depressor that activates refrigerant flow after the knurled brass fitting has been fully tightened onto a service port. This protects technicians’ hands from frostbite and prevents refrigerants from escaping into the atmosphere.
- Once attached, the innovative T SafeMate™ valve swivels above the brass nut so it won’t loosen if a hose is moved during charging, recovery, or evacuation procedures.
- Barrier Lining- Minimises refrigerant loss vs. conventional hoses.
- Product Sheet
Description
Description

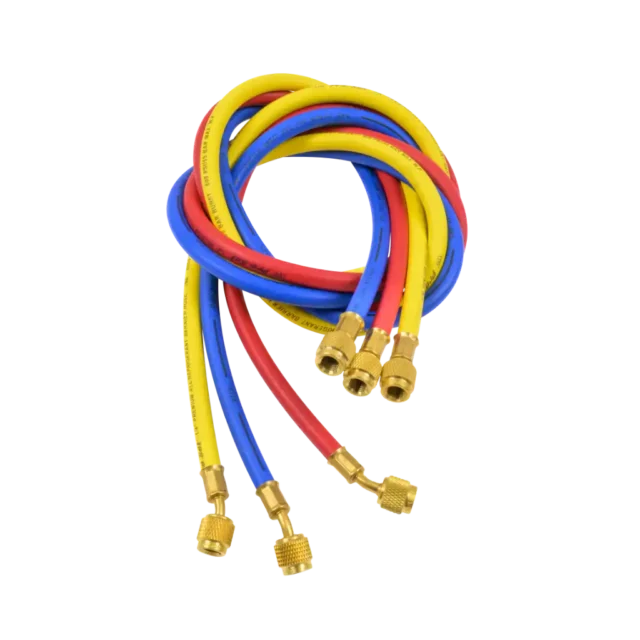

A convenient three-pack of 1/4″ patented 5 ft barrier hoses in red, yellow, and blue with SAE 5/16″ Straight, 5/16″ Valve adaptors for safely and efficiently charging, recovering, and evacuating H/CFC, HFC, HFO, plus R410a, R134a, and R12234yf refrigerants in residential and commercial HVAC/R systems.
Additional information
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 30 × 10 × 30 cm |
